Home --> Index of drilling & boring tools --> TCT brad point drill bits

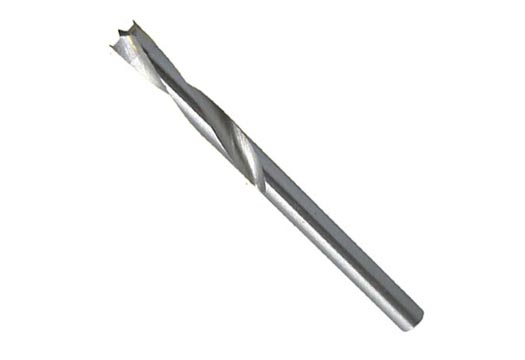

T.C.T Brad Point Drill Bits - Type H   /   Carbide Tipped

To keep its sharp and fine drilling job, carbide tipped brad point drill bits have better working performance than regular carbon steel made brand point drill bits. Besides individual ones, combined set from 5 pieces to 13 pieces is available.







* Carbide tipped cutting spurs with brad point withstand the high heat generated
by daily production work in the hardest woods.
* These industrial wood bits last far longer than even high speed steel wood bits.
*  Ideal for non-splintering and precise drilling on hard surface.
*  For drilling accurate, splinter-free holes in soft and hard woods, drywall, plywoods,
tiles, abrasive materials, laminates and plastics.
* Shank size larger than 10mm or 3/8" use reduced shank.
* Brad Point Drill Bits Set are available.

* Packaging: Individual Packaging in plastic hang pouch.

Metric sizes (mm)

Item No.
Dia.
Overall Length
Shank Dia.
BPD80030
3.0mm
60mm
3mm
BPD80040
4.0mm
75mm
4mm
BPD80050
5.0mm
85mm
5mm
BPD80055
5.5mm
85mm
5.5mm
BPD80060
6.0mm
100mm
6mm
BPD80065
6.5mm
100mm
6.5mm
BPD80070
7.0mm
120mm
7mm
BPD80080
8.0mm
120mm
8mm
BPD80090
9.0mm
120mm
9mm
BPD80010
10.0mm
120mm
10mm
BPD80011
11.0mm
150mm
10mm
BPD80012
12.0mm
150mm
10mm
BPD80013
13.0mm
150mm
10mm


 Fractional sizes (Inch)
Item No.
Dia.
Overall Length
Shank Dia.
BPD81001
1/8”
2-23/64”
1/8”
BPD81002
5/32”
2-61/64”
5/32”
BPD81003
3/16”
3-11/64”
3/16”
BPD81004
7/32”
3-11/32”
7/32”
BPD81005
1/4”
3-15/16”
1/4”
BPD81006
9/32”
3-15/16”
9/32”
BPD81007
5/16”
4-47/64”
5/16”
BPD81008
11/32”
4-47/64”
11/32”
BPD81009
3/8”
4-47/64”
3/8”
BPD81010
13/32”
4-47/64”
3/8”
BPD81011
7/16”
5-29/32”
3/8”
BPD81012
15/32”
5-29/32”
3/8”
BPD81013
1/2”
5-29/32”
3/8”



BPD-5001

5pcs Carbide Tipped Brad Point Drill Bits

in Wooden Box

 Sizes: 4,5,6,8,10mm



BPD-8001

8pcs Carbide Tipped Brad Point Drill Bits

in Wooden Box

Sizes: 4,5,6,7,8,10,12,13mm





BPD-13001

13pcs Carbide Tipped Brad Point Drill Bits

in Wooden Box

Sizes: 1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16,

11/32, 3/8,13/32, 7/16,15/32, 1/2"

 BPD-7002



7pcs Carbide Tipped Brad Point Drill Bits

in Wooden Box
