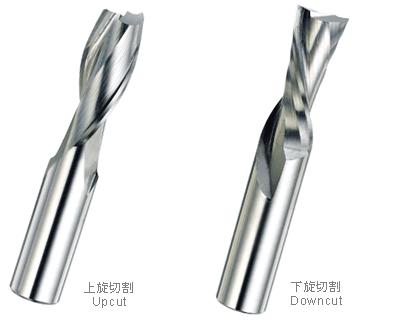

Solid Carbide Two Flute Spiral Finishing Tool-Upcut/Downcut

Page 5/5

Feature :
‧Designed to provide a smoother finished cut and rout wood and wood composites where upward/ downward chip removal, long life and quality finish are desired.
‧Suggestion RPM: 12,000(min)~24,000(min)
Suggestion Feed Range: 5,000(mm/min)~12,000(mm/min)
‧The above data of Speed & Feed are just for reference. The correct data depends on specific application.
‧Custom order ia acceptable

Suitable Material :
‧Suitable for hardwood and plank.

Suitable Machine :
‧Suitable for CNC router/ CNC machining.

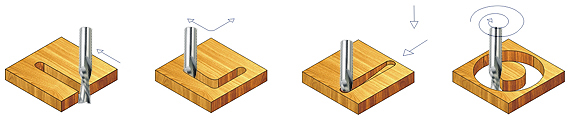

Working Methods :



Model No. Cutting Length Shank Size ( mm ) Overall Length ( mm )
5-1121E 1-1/2"  1/2"  3-1/2"
5-1141E 1-1/4"  1/2"  3"
5-1181E 1-1/8"  1/2"  3:
5-1581E 1-5/8"  1/2"  3-1/2"
5-0212E 2"  1/2"  4"
5-2181E 2-1/8"  1/2"  4"
5-0114E 1"  1/4"  2-1/2"
5-1181E 1-1/8"  1/4"  3"
5-3414E 3/4"  1/4"  2-1/2"
5-7814E 7/8"  1/4"  2-1/2"
5-2510 25  10  70
5-3012 30  12  75
5-4012 40  12  90
5-5012 50  12  100
5-3014 30  14  75
5-4014 40  14  90
5-5014 50  14  100
5-4012 40  12  100
5-0506 55
5-3016 30  16  75
5-4012 40  12  100
5-4016 40  16  90
5-5016 50  16  100
5-4012 40  12  100
5-0806 55
5-1141E 1-1/4"  1/2"  3"
5-1143E 1-1/4"  3/8"  3"
5-1183E 1-1/8"  3/8"  3"
5-1206 12  55
5-0506 15  55
5-0112E 1"  1/2"  3"
5-1185E 1-1/8"  5/16"  3"
5-1506 15  55
5-2006 20  55
5-0112E 1"  1/2"  3"
5-2008 25  70
5-0151E 1"  5/16"  2-1/2"
5-2510 25  10  70
